Nitrogen plastic welder

Nitro Weld NW-650

A complete plastic welding station with built-in temperature controllers, including N2 and compressed air selection. Use it with a nitrogen tank or connect it to a nitrogen generator.

N2 / air selector98% purity with NW650-N2110 VAC
Nitroweld NW-650 plastic welding station
Why Nitro Weld

Cleaner plastic welds with nitrogen

01

Complete station

A complete plastic welding station with built-in temperature controllers.

02

N2 or compressed air

Built-in selector for nitrogen or compressed air.

03

Use less nitrogen

With a cylinder, pre-heat and cool down with compressed air and use N2 only for the weld itself.

04

No tanks needed

Pair it with the NW650-N2 generator and eliminate tanked nitrogen altogether.

NW650-N2 generator

Make your own nitrogen for welding

The NW650-N2 generator eliminates the need for tanked nitrogen. It connects to your compressed air and supplies nitrogen straight to the NW-650.

If you use a nitrogen cylinder instead, the NW-650's built-in selector lets you pre-heat and cool down with compressed air, and use the N2 supply only for the welding itself.

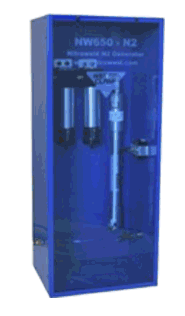

NW650-N2 nitrogen generator for the plastic welder
NW650-N2: nitrogen generator for the plastic welder.
Prices (MSRP, USD)

Welder, generator & parts

  • NW650Nitrogen plastic welder
    $2,940
  • NW650-N2Nitrogen generator for the plastic welder
    $3,540
  • NW650-E1Replacement ceramic heater element
    $145.95

All prices exclude shipping, installation and training. Full price list & finance →

Technical specifications

Plastic welder & N2 generator

Volume output
1 cfm
Maximum outlet pressure
15 psi
Nitrogen purity
98%
Nitrogen outlet
¼"
Supply voltage
110 VAC
Max current draw
8.5 A
Fuse
10 A
Power connection
IEC 320
Operating temperature
36 – 122 °F (2 – 50 °C)
Humidity
80% max at ≤ 31 °C
Noise
< 65 dB(A)
All technical specifications →
